Euro-Top Polyamide Cable Glands

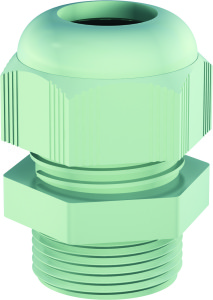

EuroTop gland polymideFeatures

  • Manufactured from Polyamide 6
  • ISO, PG and NPT sizes
  • Dimensions: from M12 x 1.5 to M63 x 1.5, PG 7 to PG 48 and NPT 3/8” to 1”
  • Standard colours grey (RAL 7035 and 7001) and black (RAL 9005)
  • Suitable for non-armoured cables
  • Also suitable for industrial and underwater applications
  • Protection class options: IP68: Underwater tested
  • Integrated strain relief to meet EN 50262
  • Short and long thread lengths
  • Temperature rating -20ºC to +100ºC and intermittent -30ºC up to +150ºC
  • Gland accessories including, fibre and sealing washers and lock nuts.

Ingress protection levels

IP68 (EN 60529/IEC 60529)

Ambient temperature

-20ºC to +100°C

Description

Euro-top polyamide glands, are competitively priced and given the high specification, offer good value when compared with other polyamide glands on the market. Euro-top glands, complete with internal strain relief to EN50262, are approved to IP68 as standard for normal industrial use and permanent submersion. Colours: Grey (RAL 7035 and 7001) and black (RAL 9005). Temperature range: -20ºC to +100ºC. Sizes range from ISO M12 to M63, PG7 to PG48 and NPT 3/8” to 1”, which is sufficient scope to meet most cable entry applications. Locknuts which incorporate a collar to avoid surface damage during installation are available at additional cost.



Euro-Top Polyamide Cable Glands

Article
M 		Clamping Range
  L
 Ø D1
RAL 7001 RAL 7035 RAL 9005
12080512 11080512 13080512 M12 3.0 6.5 15 8 12
12080516 11080516 13080516 M16 5.0 10.0 22 10 16
12480516 11480516 13480516 M16 5.0 10.0 22 15 16
12080520 11080520 13080520 M20 6.0 12.0 24 10 20
12080522 11080522 13080522 M20 10.0 14.0 27 10 20
12480520 11480520 13480520 M20 6.0 12.0 24 15 20
12480522 11480522 13480522 M20 10.0 14.0 27 15 20
12080525 11080525 13080525 M25 13.0 18.0 33 10 25
12480525 11480525 13480525 M25 13.0 18.0 33 15 25
12080532 11080532 13080532 M32 18.0 25.0 42 18 32
12080540 11080540 13080540 M40 22.0 32.0 53 18 40
12080550 11080550 13080550 M50 30.0 38.0 60 18 50
12080563 11080563 13080563 M63 34.0 44.0 65 18 63
Technical data (Extract) (For detailed information please click here)

Protection class

IP 68 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

Polyamide 6

Weight

see data sheet

Resistance

Impact resistance – see data sheet

Documentation

Euro-Top-glands datasheet

Declaration of Conformity

Customer requirements

Operating Instructions
