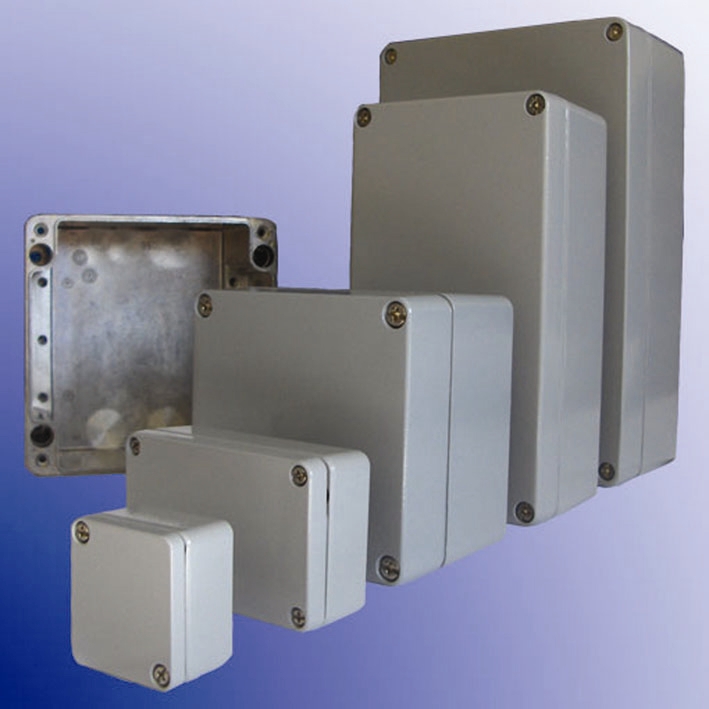

DescriptionCEA aluminium enclosures are supplied with protection to IP66 as standard and IP67 or IP68 as options. CEAs are available in over 30 different sizes from – 50 mm high x 45 mm wide x 30 mm deep to 400 mm high x 310 mm wide x 110 mm deep. These Si 12 alloy die cast aluminium boxes whilst light weight, offer high impact (IK08) and corrosion resistance. Finish options include: unpainted, painted grey (RAL 7001), a hard anodised sea water resistant coating, linished and RFI shielding for EMC compliance (2004/108/EC). CEA s standard working temperature range of -40º C to +90º C can be increased to -60º C to Cable entries can be drilled on-site or factory machined by CE-TEK prior to delivery. CEA enclosures can also be supplied as empty enclosures, pre-assembled with terminals and internal/external earth stud or populated with terminals to your specification. Available with ATEX Directive Ex e, Ex ia and Ex ib certification and a temperature classification of T5 or T6 (see CEA Ex e webpage for more information). |
| Product Code | Height mm | Width mm | Depth mm |
| CEA504530 | 50 | 45 | 30 |
| CEA586436 | 58 | 64 | 36 |
| CEA986436 | 98 | 64 | 36 |
| CEA156436 | 150 | 64 | 36 |
| CEA186436 | 185 | 64 | 36 |
| CEA758057 | 75 | 80 | 57 |
| CEA128057 | 125 | 80 | 57 |
| CEA178057 | 175 | 80 | 57 |
| CEA258052 | 250 | 80 | 52 |
| CEA101080 | 100 | 100 | 80 |
| CEA161080 | 160 | 100 | 80 |
| CEA201080 | 200 | 100 | 80 |
| CEA231011 | 230 | 100 | 110 |
| CEA121280 | 122 | 120 | 80 |
| CEA121290 | 122 | 120 | 90 |
| CEA221280 | 220 | 120 | 80 |
| CEA221290 | 220 | 120 | 90 |
| CEA361280 | 360 | 120 | 80 |
| CEA141490 | 140 | 140 | 90 |
| CEA201490 | 200 | 140 | 90 |
| CEA161690 | 160 | 160 | 90 |
| CEA261690 | 260 | 160 | 90 |
| CEA361690 | 360 | 160 | 90 |
| CEA561690 | 560 | 160 | 90 |
| CEA181810 | 180 | 180 | 100 |
| CEA281810* | 280 | 180 | 100 |
| CEA202311 | 200 | 230 | 110 |
| CEA202318 | 200 | 230 | 180 |
| CEA332311 | 330 | 230 | 110 |
| CEA332318 | 330 | 230 | 180 |
| CEA402311 | 400 | 230 | 110 |
| CEA602311 | 600 | 230 | 110 |
| CEA403111 | 400 | 310 | 110 |
*CEA281810 is LU approved for LV power cabling applications (LU-APR ID 4791).
| Technical data (Extract) (For detailed information please click here) |
|
Protection class |
IP 66, 67 and 68 (EN 60529/IEC 60529) |
|
|
Dimensions |
see data sheet |
|
|
Material |
AC-AlSi 12 (Fe) aluminium EN 1706 |
|
|
Weight |
see data sheet |
|
|
Resistance |
Impact resistance >7 Joule, EN 50014 |
Documentation
|
|
CEA Data Sheet – Aluminium Enclosures |
|
|
|
||
|
|
Declaration of Compliance London Underground re CE-TEK, CEA281810-LU |
|
|
|
||
|
|
Customer requirements – Terminal/Junction Boxes |
|
|
|
||
|
|
Operating Instructions – Empty enclosure Operating Instructions – Populated enclosure
|
|
|
|
||
