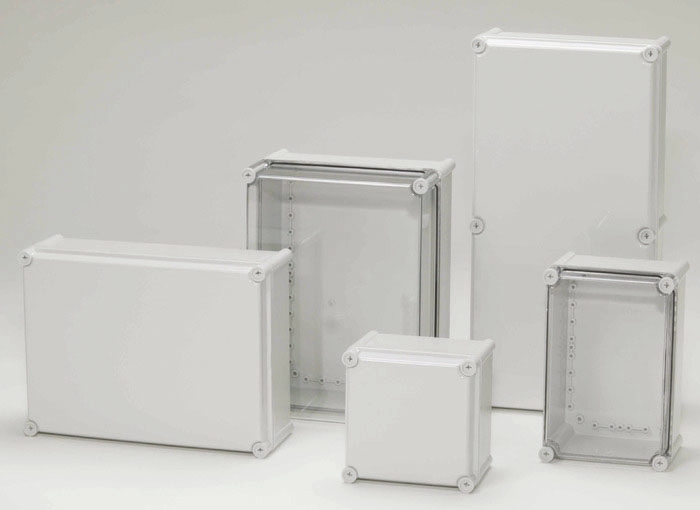

CE-SLD ABS and Polycarbonate Enclosures

Features

Sizes from 188x188x130 mm to 558x378x180 mm
Manufactured using polycarbonate or ABS, which is both highly resistant to corrosion, combined with high impact strength and lightweight.
Available as IP66 or 67
Polycarbonate temperature range: -40ºC to +120ºC. ABS temperature range:-40ºC to +80ºC.
Available as standard colour RAL 7035 (grey).
Optional colours to customer specification are available.
The transparent clear polycarbonate cover is smoked grey.
The cover screws are available in black (with smoked transparent covers) or grey (with grey covers).
RFI shielding for EMC compliance and screen printing.

Ingress protection levels

IP66, 67 and (EN 60529/IEC 60529)

Ambient temperature

-40ºC to +120°C with appropriate gasket

Description

The CE SLD range offers enclosures manufactured from polycarbonate or ABS, which is highly resistant to corrosion, combined with high impact strength and lightweight.

The CE SLD range is an excellent choice to house electronic and electrical components. It is also an ideal alternative to polyester enclosures. CE SLD enclosures are available with screw and hinge covers/lids in both polycarbonate and ABS.

Product code	Height	Width	Depth
Polycarbonate Enclosures
PC191913	190	190	130
PC191918	190	190	180
PC281913	280	190	130
PC281918	280	190	180
PC381913	380	190	130
PC381918	380	190	180
PC282813	280	280	130
PC282818	280	280	180
PC382813	380	280	130
PC382818	380	280	180
PC562813	560	280	130
PC563818	560	380	180
ABS Enclosures
ABS191913	190	190	130
ABS191918	190	190	180
ABS281913	280	190	130
ABS281918	280	190	180
ABS381913	380	190	130
ABS381918	380	190	180
ABS282813	280	280	130
ABS282818	280	280	180
ABS382813	380	280	130
ABS382818	380	280	180
ABS562813	560	280	130
ABS563818	560	380	180

Technical data (Extract) (For detailed information please click here)

Protection class	IP 67 and 68 (EN 60529/IEC 60529)
Dimensions	see data sheet
Material	ABS or Polycarbonate
Weight	see data sheet
Resistance	Impact resistance – see data sheet

Documentation

	CE-SLD Data Sheet – ABS/Polycarbonate Enclosures

	Declaration of Conformity

	Customer requirements – Terminal Boxes

	Operating Instructions – Empty enclosure
