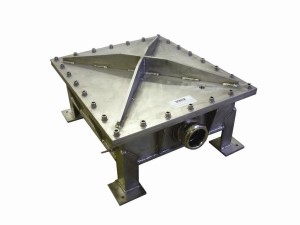

ip68Features

Manufactured from 316L stainless steel

IP68 permanent submersion from 1m to 300m depths as standard

Custom designs to permanent submersion depths of up to 3000m

In-house water tank, vacuum pressure and hydrostatic testing.



Ingress protection levels

IP 68 (EN 60529/IEC 60529)

Ambient temperature

-55ºC to +65°C with appropriate gasket

Description

CE-TEK’s customer applications for IP68 enclosures are very diverse with total water protection from 1m to 300m as standard and custom designs up to 3000m. Applications include: offshore oil and gas, The Thames Flood Barrier, 2012 London Olympic Games, river and reservoir bed monitoring, special MOD vehicles for underwater use, camera enclosures for counting marine life, underwater lighting enclosures on submersible buoys, lighting junction boxes in swimming pools and fountains and numerous other applications. CE-TEKs IP68 underwater and subsea enclosures are manufactured from a range of materials including 316L stainless steel, aluminium, GRP and rigid polyurethane.

Optional extras include: mounting plates, external mounting feet, hinged doors, viewing windows, various finishes and colours, cable entries, welded cable bosses and IP68 glands.

Product CodeCEX15159068 Submersion DepthUp to 30m Height150 Width150 Depth90
CEX30301568 Up to 30m 306 306 150
CEX48482068 Up to 30m 480 480 210
CEX60602068 Up to 30m 600 600 210
CEX97672068 Up to 30m 977 677 210
Technical data (Extract) (For detailed information please click here)

Protection class

IP68 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

316L stainless steel

Weight

see data sheet

Resistance

see data sheet

Documentation

CEX IP68 Data Sheet – Stainless Steel Enclosures

Declaration of Conformity

Customer requirements – Terminal/Junction Boxes

Operating Instructions – Empty enclosure

Operating Instructions – Populated enclosure
