CEP IP68 Polyester Enclosures

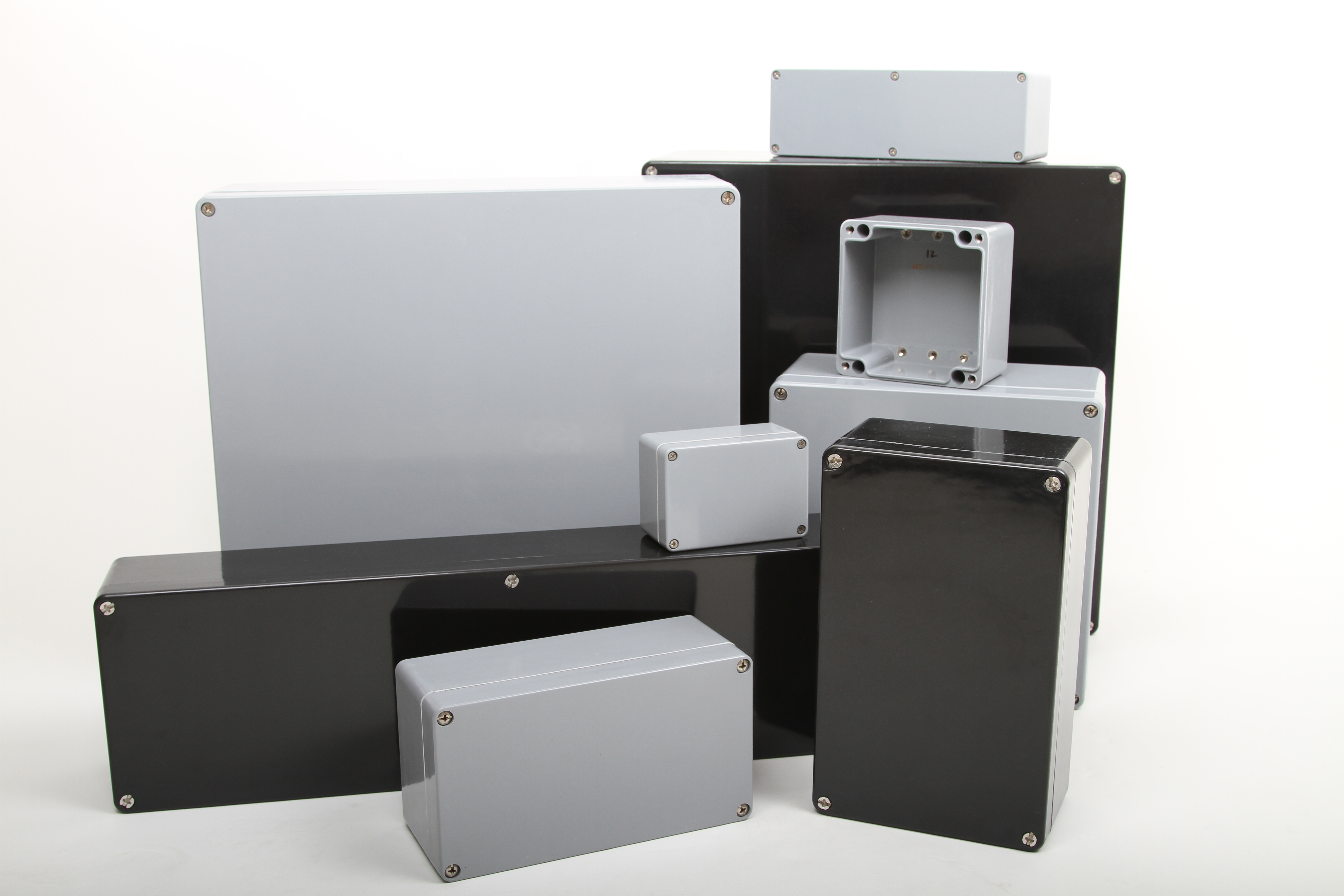

CEP2

Features

  • Manufactured from GRP (Polyester).
  • IP68 permanent submersion from 1m to 3m depths as standard
  • In-house water tank, vacuum pressure and hydrostatic testing.

Ingress protection levels

IP68 (EN 60529/IEC 60529)

Ambient temperature

-55ºC to +65°C with appropriate gasket

Description

CE-TEK’s customer applications for IP68 enclosures are very diverse. Three CEP polyester enclosures (see table above) offer total water protection to IP68 and are suitable for permanent submersion with depths of up to 3 m.

Applications include: offshore oil and gas, The Thames Flood Barrier, 2012 London Olympic Games, river and reservoir bed monitoring, special MOD vehicles for underwater use, camera enclosures for counting marine life, underwater lighting enclosures on submersible buoys, lighting junction boxes in swimming pools and fountains and numerous other applications.

Optional extras include: mounting plates, external mounting feet, hinged doors, viewing windows, various finishes and colours, cable entries and IP68 gland

Product Code Submersion depth(m) Height Width Depth
CEP12129068 Up to 3m 120 120 90
CEP22129068 Up to 3m 220 120 90
CEP26169068 Up to 3m 260 160 90
Technical data (Extract) (For detailed information please click here)

Protection class

IP 68 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

Polyester (GRP)

Weight

see data sheet

Resistance

see data sheet

Documentation

IP68 Enclosures Data Sheet

Declaration of Conformity

Customer requirements – Terminal/Junction Boxes

Operating Instructions – Empty enclosure

Operating Instructions – Populated enclosure
