CEP Ex e Polyester Enclosures

CEP Ex datasheet Sira CEP CERT 08ATEX3213 Back

CEP Ex e, Ex ia certified Glass Reinforced Polyester (GRP) Enclosures

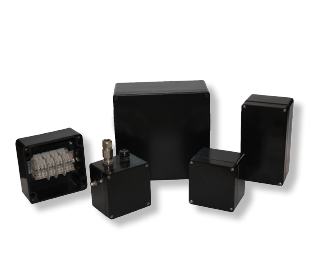

cep exe group

Features

  • Corrosion and seawater proof
  • Chemical and temperature resistant
  • Flame-retardant
  • Constructed from Glass Reinforced Polyester (GRP)
  • Finished in black (RAL 9005) carbon loaded anti-static GRP with a surface resistance < 10^9 Ω
  • Available as empty enclosures or fitted with terminals with ATEX or IECEx apparatus approval.
  • Fitted with Internal/external earth stud.
  • Lids fitted with stainless steel fasteners
  • Available with RFI shielding for EMC compliance
  • Available with internal/external hinges, mounting plates, external mounting feet and wire lock screws.

Certification

SIRA 08 ATEX 3213

IECEx SIR 13.0039X

Ex protection type (EN 50019/IEC 60079-7 and EN 50020/IEC 60079-11)

Ex II 1 GD
Ex ia IIC T5 and T6
Ex ta IIIC T85°C and T100°C
Ex II 1 2 GD
Ex e IIC T5 and T6
Ex tb IIIC T85°C and T100°C

Ingress protection levels

IP66, 67 and 68 (EN 60529/IEC 60529)

Ambient temperature

-55ºC to +65°C with appropriate gasket

Description

CEP polyester enclosures have been designed to meet the highest standards of protection even when they are used in extremely unfavourable conditions, e.g. exposure to aggressive chemical media or hard mechanical conditions associated with industrial, petro-chemical and aerospace industries.

The CEP range is moulded from glass reinforced polyester (GRP) and offers light weight and high impact strength making them suitable for housing electronic and electrical equipment of high value. The ‘shoebox’ design makes it aesthetically suitable for a wide range of applications including mounting key pads and electronic displays. The inside base of the enclosure has threaded bushings for fastening DIN rails, mounting plates or panels. The enclosure lid is secured with stainless steel fasteners which are located outside the sealed area.

Available with ATEX 2014/34/EU Directive Ex e, Ex ia and Ex ib certification and a temperature classification of T5 or T6.
Product Code Height mm Width mm Depth mm
CEP807555 80 75 55
CEP807575 80 75 75
CEP117555 110 75 55
CEP117575 110 75 75
CEP167555 160 75 55
CEP167575 160 75 75
CEP197555 190 75 55
CEP197575 190 75 75
CEP237555 230 75 55
CEP237575 230 75 75
CEP121290 122 120 90
CEP221290 220 120 90
CEP161690 160 160 90
CEP261690 260 160 90
CEP361690 360 160 90
CEP561690 560 160 90
CEP252512 255 250 120
CEP252516 255 250 160
CEP402512 400 250 120
CEP404012 400 405 120
CEP404020 400 405 200
CEP602512 600 250 120



Technical data (Extract) (For detailed information please click here)

Protection class

IP66 (EN 60529/IEC 60529) as standard. IP67 and IP68 available as options

Dimensions

see data sheet

Material

Glass-fibre reinforced polyester, EN 60079-0
halogen-free, RAL 9005 (black)

Weight

see data sheet

Resistance

surface resistance < 10^9 Ω

Documentation



 IECEx SIR 13.0039X

          CEP datasheet

Declaration of Conformity

 CE-TEK CEP Declaration of conformity

Customer requirements – Terminal Boxes

Operating Instructions – Empty enclosure

Operating Instructions – Populated enclosure
