CEP Fire-rated Polyester Enclosures

Features

Fully tested to IEC60331-2: 2009 at 830ºC for 3 hours, BS8434-2: 2003 + A2: 2009 at 970ºC for 2 hours or IEC331 at 750ºC for 3 hours.

Fire rated enclosures are available as: CEX (heavy duty) stainless steel, ACEX stainless steel, CEA aluminium and CEP Polyester.

ATEX Ex e certification is also for CEX, ACEX, CEA and CEP enclosures as an option.

Ingress protection levels

IP66 and 67 (EN 60529/IEC 60529)

Ambient temperature

-55ºC to +65°C with appropriate gasket

Description

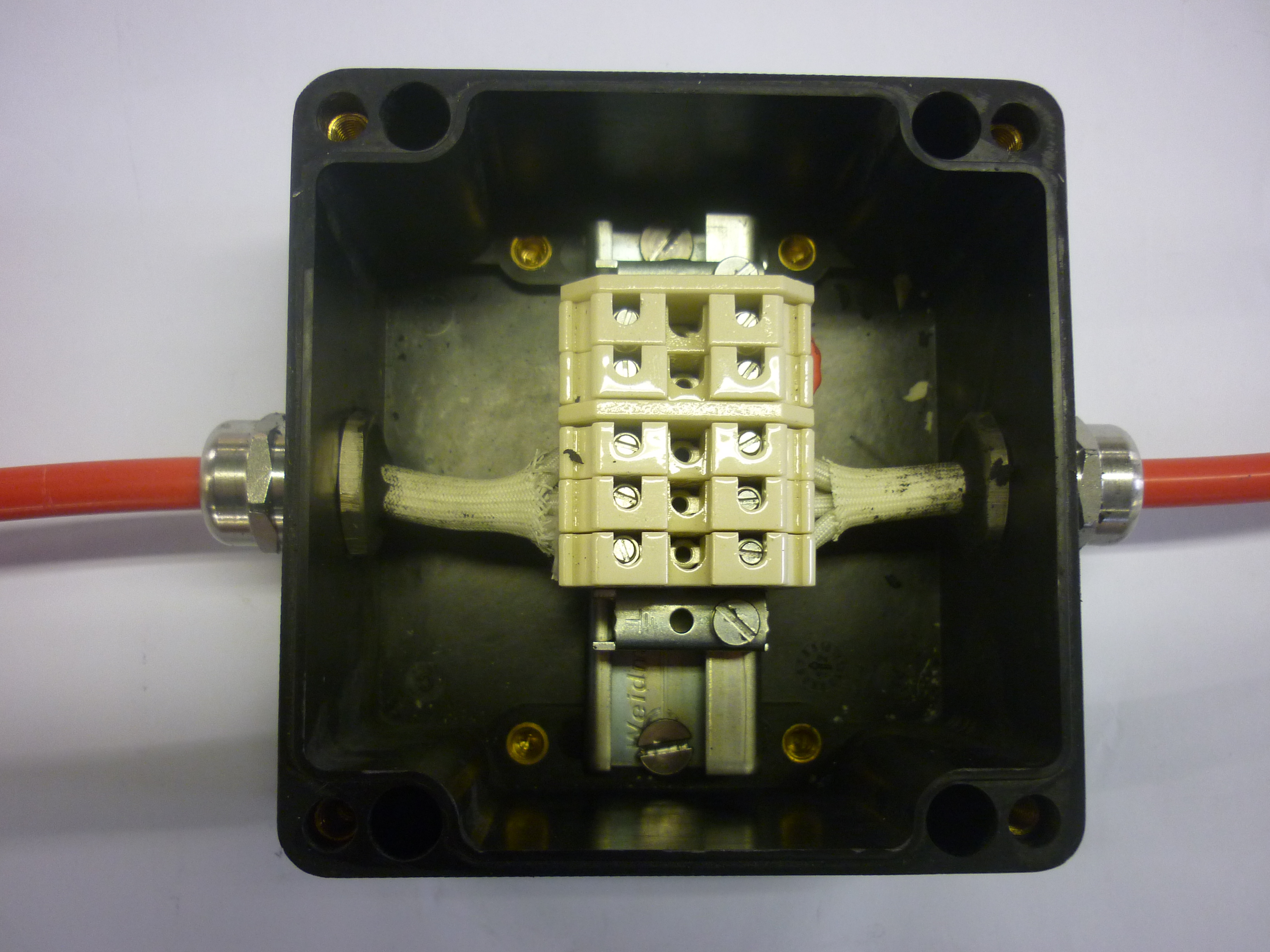

CEP polyester (GRP) enclosures have been designed to meet the highest standards of protection even when they are used in extremely unfavourable conditions.

CE-TEK’s CEP enclosures have been successfully tested to all the latest fire standards for use in buildings and infrastructure projects.

When using fire rated cables on a project, the correct specification of junction boxes can often get overlooked. When fire strikes, it is not selective in the location junction boxes and to maintain system integrity it is imperative that junction boxes are specified to the same rating as the cable being used.

The consequences of not selecting the correct type of enclosure can be huge, both financially and in terms of installation slippages. An example of this is where architects had specified fire-rated enclosures for a luxury hotel group, but electrical contractors had installed less expensive industrial enclosures that were not fire-rated, which had to be replaced throughout the hotel.

CE-TEK manufacture four series of fire rated junction boxes (CEX, ACEX, CEP and CEA), which are tested for fire to various standards including: BS5839-1: 2013 Sec 26.2e; BS EN 50200: 2006; IEC60331-2: 2009, BS8434-2: 2003 + A2: 2009; IEC331 and BS6387-11: 1994.

Typical applications include road, motorway, rail and underground tunnels, offices, hotels and public buildings, and major infrastructure projects.



Product Code Height Width Depth Max No. of 4mm² terminals Max. No of M20 cable entries
CEP121290FR 122 120 90 7 4
CEP221290FR 220 120 90 19 6
CEP161690FR 160 160 90 11 8
CEP261690FR 260 160 90 23 14
CEP361690FR 360 160 90 35 20
CEP561690FR 560 160 90 59 34
CEP252512FR 255 250 120 23 (2 rows) 17
CEP402512FR 400 250 120 40 (2 rows) 32
CEP404012FR 400 405 120 63 (2 rows) 32
CEP602512FR 600 250 120 40 (3 rows) 38

Please add ‘F’ suffix to the product code when ordering with fuse, e.g. CEP121290FRF

Please add ‘FP’ suffix to the product code when ordering with fuse and plug for connecting to a suitable light fitting, e.g. CEP121290FRFP

Technical data (Extract) (For detailed information please click here)

Protection class

IP 66 and 67 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

Glass-fibre reinforced polyester, EN 60079-0
halogen-free, RAL 9005 (black) or RAL 7001 (grey)

Weight

see data sheet

Resistance

see data sheet

Documentation

CEP FR datasheet

CE-TEK CEP Fire Test Cert to IEC 60331-2 830C for 3 hours

CE-TEK CEP Fire Test Certificate to BS 8434-2 970C for 2 hours

Fire Rated Junction Box Installation Guide

Declaration of Conformity

Customer requirements – Terminal/Junction Boxes

Operating Instructions – Empty enclosure

Operating Instructions – Populated enclosure
