CE-SDP Small Mild Steel Hinged Enclosures

Data Sheet Documentation Back

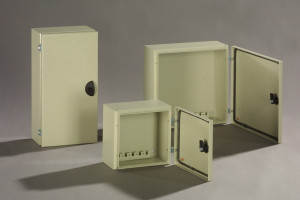

CE-SDP small mild steel terminal boxes with hinged door and key lock

sdpFeatures

  • Manufactured from mild steel finished in grey (RAL 7035)
  • 9 popular sizes in mild steel (200x200x80 mm to 400x300x120 mm)
  • Hinged door with key locking system
  • Internal mounting rails to accept a DIN rail or mounting plate
  • IP55: Dust and hose proof

Ingress protection level

IP55 (EN 60529/IEC 60529)

Ambient temperature

-55ºC to +65°C with appropriate gasket

Description

CE-TEK manufactures a range of small terminal boxes to suit all application areas and budgets.

CE-SDP are small terminal boxes manufactured from mild steel and finished in grey (RAL 7035), which feature a hinged door rather than a screw down lid and are available in 9 popular sizes ranging from 200x200x80 mm to 400x300x120 mm. The hinged door has a double bar key locking system. CE-SDP terminal boxes have internal mounting rails to accept a DIN rail or mounting plate. Ingress protection is IP55 (dust and hose proof) as standard.



Product Code Height Width Depth
CE-SDP2208 200 200 80
CE-SDP2308 200 300 80
CE-SDP2408 200 400 80
CE-SDP2212 200 200 120
CE-SDP2412  200 400 120
CE-SDP2512 200 500 120
CE-SDP3312 300 300 120
CE-SDP3412 400 300 120



Technical data (Extract) (For detailed information please click here)

Protection class

IP 55 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

Mild steel – powder coated.
Painted RAL 7035 (grey). Special paint
colours available on request.

Weight

see data sheet

Resistance

Impact resistance IK10

Documentation

CE-SDP Data Sheet – Small Mild Steel Hinged Enclosures

Declaration of Conformity

Customer requirements – Terminal Boxes

Operating Instructions – Empty enclosure

Operating Instructions – Populated enclosures
