CE-SDF Mild Steel Terminal Boxes with Gland Plates

Data Sheet Documentation Back

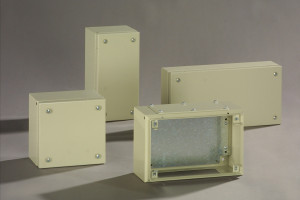

CE-SDF Mild Steel Terminal Boxes with 2, 4, 6   or 8 Gland Plates.

 sdf

Features

  • 12 popular sizes in mild steel (200x300x120 mm to 400x800x120 mm)
  • Manufactured from mild steel finished in grey (RAL 7035)
  • Screw cover/lid with captive screws
  • 2 to 8 gland plates and gaskets depending on size
  • Holes provided for fixing hinges
  • Internal mounting rails to accept a DIN rail or mounting plate
  • IP66: Dust and hose proof

Ingress protection levels

IP66 (EN 60529/IEC 60529)

Ambient temperature

-55ºC to +65°C with appropriate gasket

Description

CE-TEK manufactures a range of small terminal boxes to suit all application areas and budgets. CE-SDF terminal boxes feature 2, 4, 6 or 8 gland plates (depending on the enclosure dimensions) and are available in 12 popular sizes.



Product Code Height Width Depth Number of gland plates
CE-SDF3212 300 200 120  2
CE-SDF3312 300 300 120  4
CE-SDF4212 400 200 120  2
CE-SDF4312 400 300 120  4
CE-SDF4412 400 400 120  4
CE-SDF5212 500 200 120  4
CE-SDF5312 500 300 120  6
CE-SDF6212 600 200 120  4
CE-SDF6312 600 300 120  6
CE-SDF6412 600 400 120  6
CE-SDF8212 800 200 120  6
CE-SDF8412 800 400 120  8
Technical data (Extract) (For detailed information please click here)

Protection class

IP 66 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

Powder coated mild steel

Weight

see data sheet

Resistance

Impact resistance – IK10

Documentation

CE-SDF Data Sheet – Mild Steel Enclosures

Declaration of Conformity

Customer requirements – Terminal Boxes

Operating Instructions – Empty enclosure

Operating Instructions – Populated enclosure
