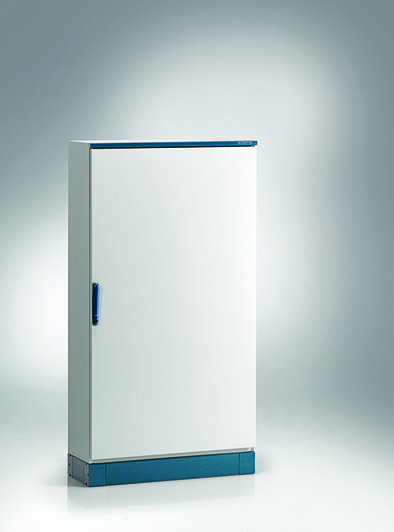

CE-CS Mild/Steel Steel Compact Enclosures

Features

• Compact Design which larger than CE-ST enclosures but smaller than CE-1000 floor standing cabinets
• Constructed from 1.5mm mild or stainless steel sheet, fully welded enclosure
• 2mm sheet steel single and double doors
• Plexiglass doors available as an option
• Mild steel models are finished in grey (RAL 7035).
• Also available unpainted and in other colours on request.
• 2.5mm steel internal mounting plate supplied as standard
• Available as empty enclosures or fitted with terminals.
• Available with floor mounting plinth
• Double bar locking system
• 2 removable gland plates fitted to the base
• Machining available at additional cost.
• Available with wall mounting brackets and lifting eye bolts at additional cost.

Description

CE-CS compact range of floor standing enclosures are positioned between the smaller CE-ST wall mounted enclosures and the larger CE-1000 range of monobloc floor standing enclosures. CE-CS enclosures are manufactured from 1.5mm thickness mild (finished in grey RAL7035) or stainless steel, with 2mm thickness single or double door and two bar locking system. The CE-CS range is also available with a Plexiglass door. Each CS enclosure is supplied with a sheet steel mounting plate, which can be inserted from the front of the cabinet, and two gland plates to the bottom face. Floor mounting plinths are an option on all CE-CS enclosures. Various accessories include: wall mounting brackets, lifting eye bolts and custom machining.

Protection class

IP55 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

Mild Steel – powder coated paint RAL 7035 (grey) as standard or special paint colours available on request. 304 or 316 stainless steel.

Weight

see data sheet

Resistance

Impact resistance: IK10
