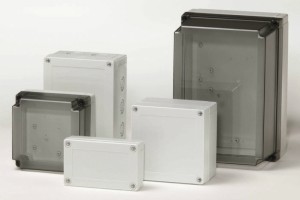

CE-Multi – ABS or Polycarbonate Enclosures

CE-MULTIFeatures

  • Sizes from 130x80x35mm to 255x180x175mm
  • Manufactured using polycarbonate or ABS, which is both highly resistant to corrosion, combined with high impact strength and lightweight.
  • There are 3 base depths and up to 4 cover/lid choices per base size; creating over 240 enclosure variations.
  • Available as IP65, 66 or 67
  • Polycarbonate temperature range: -40ºC to +120ºC. ABS temperature range:-40ºC to +80ºC.
  • Available as standard colour RAL 7035 (grey).
  • Optional colours to customer specification are available.
  • The transparent clear polycarbonate cover is smoked grey.
  • The cover screws are available in black (with smoked transparent covers) or grey (with grey covers).
  • RFI shielding for EMC compliance and screen printing.

Ingress protection levels

IP65, 66, 67 and (EN 60529/IEC 60529)

Ambient temperature

-55ºC to +65°C with appropriate gasket

Description

The CE Multi range offers medium to large size enclosures manufactured using polycarbonate or ABS, which is both highly resistant to corrosion, combined with high impact strength and lightweight.

CE Multi polycarbonate and ABS enclosures utilise world-class injection moulding technology. They are designed to house and protect all kinds of electrical and electronic components, and are particularly suitable for hostile environments. There are 3 base depths and up to 4 cover/lid choices per base size; creating over 240 enclosure variations.
Covers/lids are available as opaque or transparent ‘smoked grey’. A wide selection of accessories is available including a hinged ‘Swing Out’ inner panel, the ‘Swing Panel’.



Product code Height Width Depth
Polycarbonate Enclosures
PC100-35 130 80 35
PC100-60 130 80 60
PC100-75 130 80 75
PC100-100 130 80 100
PC100-125 130 80 125
PC125-30 130 130 30
PC125-35 130 130 35
PC125-50 130 130 50
PC125-60 130 130 60
PC-125-75 130 130 75
PC-125-100 130 130 100
PC150-30 180 130 30
PC150-50 180 130 50
PC150-60 180 130 60
PC150-75 180 130 75
PC150-100 180 130 100
PC150-125 180 130 125
PC175-60 180 180 60
PC175-100 180 180 100
PC200-60 255 180 60
PC200-75 255 180 75
PC200-85 255 180 85
PC200-100 255 180 100
PC200-125 255 180 125
PC200-150 255 180 150
PC200-175 255 180 175
ABS enclosures
ABS100-35 130 80 35
ABS100-60 130 80 60
ABS100-75 130 80 75
ABS100-100 130 80 100
ABS100-125 130 80 125
ABS125-30 130 130 30
ABS125-35 130 130 35
ABS125-50 130 130 50
ABS125-60 130 130 60
ABS-125-75 130 130 75
ABS-125-100 130 130 100
ABS150-30 180 130 30
ABS150-50 180 130 50
ABS150-60 180 130 60
ABS150-75 180 130 75
ABS150-100 180 130 100
ABS150-125 180 130 125
ABS175-60 180 180 60
ABS175-100 180 180 100
ABS200-60 255 180 60
ABS200-75 255 180 75
ABS200-85 255 180 85
ABS200-100 255 180 100
ABS200-125 255 180 125
ABS200-150 255 180 150
Technical data (Extract) (For detailed information please click here)

Protection class

IP 65, 66 and 67 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

ABS or Polycarbonate

Weight

see data sheet

Resistance

Impact resistance – see data sheet

Documentation

CE-Multi Data Sheet – ABS or Polycarbonate Enclosures

Declaration of Conformity

Customer requirements – Terminal Boxes

Operating Instructions – Empty enclosure
