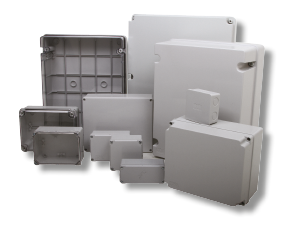

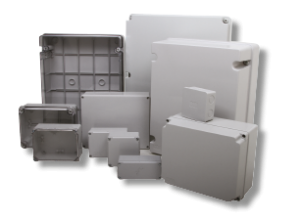

CE-GR Low Cost ABS Enclosures

Features

Manufactured from ABS Techno-polymer, which is a strong and light weight material.
Captive steel or polymer screws with universal cross/cut head
IP65 protection class which is dustproof and offers ingress protection against low pressure jets of water
Operating temperature range -15ºC to +60ºC
Available with opaque or transparent lids
Over 40 different sizes and variation in stock
Halogen free – no toxic emissions are given in the event of a fire unlike PVC enclosures

Ingress protection levels

IP65 (EN 60529/IEC 60529)

Ambient temperature

-15ºC to +60°C

Description

CE-TEK’s GR range is a fantastic low cost, halogen free ABS polymer enclosure for housing electronic and electrical equipment. The GR range is strong and light and with an IP65 rating is popular with electricians, OEM’s, computer network and electronic engineers, industrial control engineers and hobbyists. GR enclosures are available, with opaque and transparent lids, from stock in over 40 popular sizes.

GR enclosures are available with screw down opaque or transparent lids.

Optional extras include: wall fixing brackets, DIN rails and mounting plates, hinges (for larger sizes only).

Product Code	Height mm	Width mm	Depth mm
GR17000	Ø83 diameter		45
GR17001	Ø68 diameter		40
GR17002	130	55	60
GR17003	83	83	43
GR17004	100	100	60
GR17006	130	90	65
GR17008	150	110	75
GR17010	150	140	75
GR17011	190	140	75
GR17012	170	170	75
GR17013	170	170	128
GR17014	240	190	90
GR17015	190	140	140
GR17016	310	240	100
GR17020	250	190	100
GR17240	240	190	120
GR17242	310	240	120
GR17244	380	300	120
GR17246	380	300	180
GR17248	460	380	120
GR17250	460	380	180

Technical data (Extract) (For detailed information please click here)

Protection class	IP 65 (EN 60529/IEC 60529)
Dimensions	see data sheet
Material	ABS (acrylniterile-butadiene-styrene)Techno-Polymer
Weight	see data sheet
Resistance	Impact resistance – see data sheet

Documentation

	CE-GR ABS Enclosure brochure with glands CE-GR ABS Enclosure brochure

	Declaration of Conformity

	Customer requirements – Terminal Boxes

	Operating Instructions – Empty enclosure Operating Instructions – Populated enclosure
