Euro-Top – Hygienic and Hygienic EMC

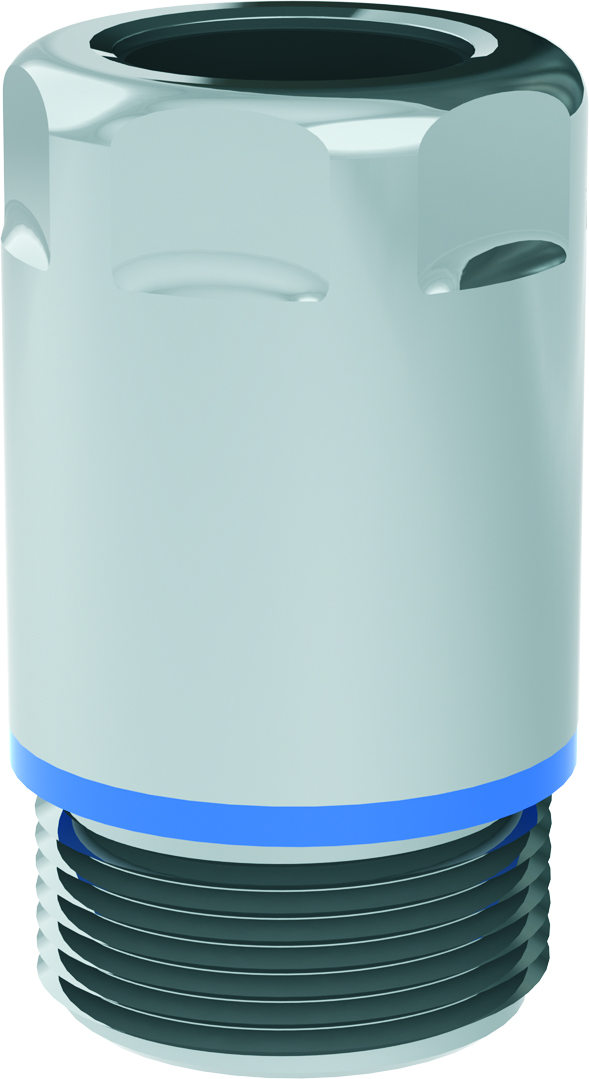

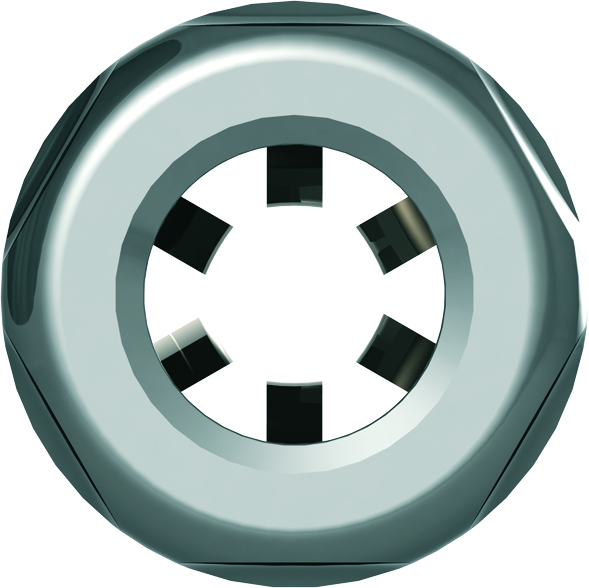

HYG9005xxHYG9105xxFeatures

  • 304 stainless steel gland and locknut
  • ISO and PG sizes
  • Suitable for non-armoured cables
  • Also suitable for hygienic and underwater applications
  • Protection class options: IP68 (underwater tested) or IP69K (steam pressure tested)
  • Temperature rating -20ºC to +100ºC
  • Gland accessories including, tightening tool, which is necessary on some applications, earth tags, fibre and sealing washers.
  • EMC/EMV versions are also available
  • Dimensions: from M12 x 1.5 to M25 x 1.5

Ingress protection levels

IP68 and 69K (EN 60529/IEC 60529)

Ambient temperature

-20ºC to +100°C with appropriate gasket

Description

Euro-Top Hygienic cable glands (sizes M16 to M25) have been especially designed for hygiene, food processing, chemical, beverage and pharmaceutical environments where cable gland surfaces must be free of dust deposits and production residues. In order to achieve a completely flat surface for the Euro-Top Hygienic, all active the components are placed into the interior of the body of the cable gland. The gland washers are TPE, a material authorised for the food industry under FDA 21 CFR 177.2600. Additionally, due to the very compact and well thought-out design, protection classes IP68 and IP69K are met without problem. These characteristics mean that the component can be cleaned quickly and inexpensively with high-pressure cleaners.



Electromagnetic shielded versions (EMC/EMV) are available in all hygienic sizes.

Product Code Size mm  Clamping Clamping Nut size mm Thread length
HYG900512 M12          3.0          6.5 14 6.0
HYG900516 M16          5.0         10.0 18 7.0
HYG900520 M20          6.0         12.0 22 10.0
HYG900525 M25        12.0         17.0 28 14.0
Tightening Tool
HYGMON12 M12 7    5
HYGMON16 M16 10    5
HYGMON20 M20 13    5
HYGMON25 M25 17    5
Technical data (Extract) (For detailed information please click here)

Protection class

IP 68 and 69K (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

304L stainless steel

Weight

see data sheet

Resistance

Impact resistance – see data sheet
