Euro-Top Connect – Cable Gland Insert

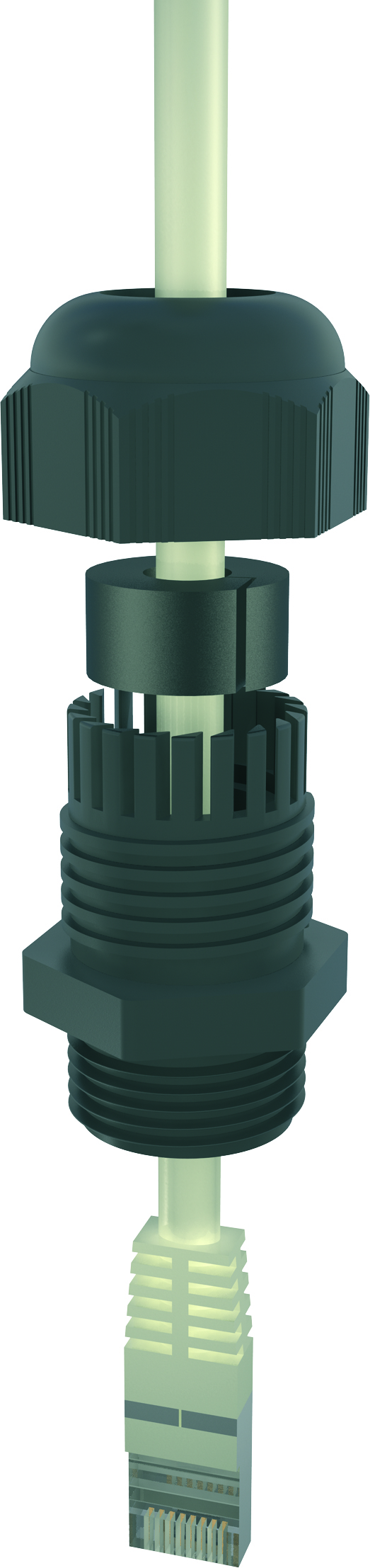

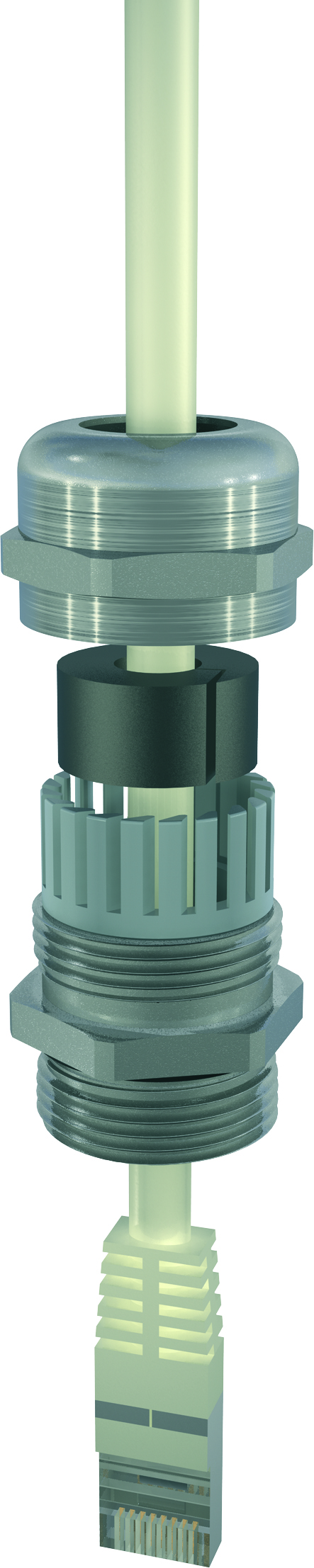

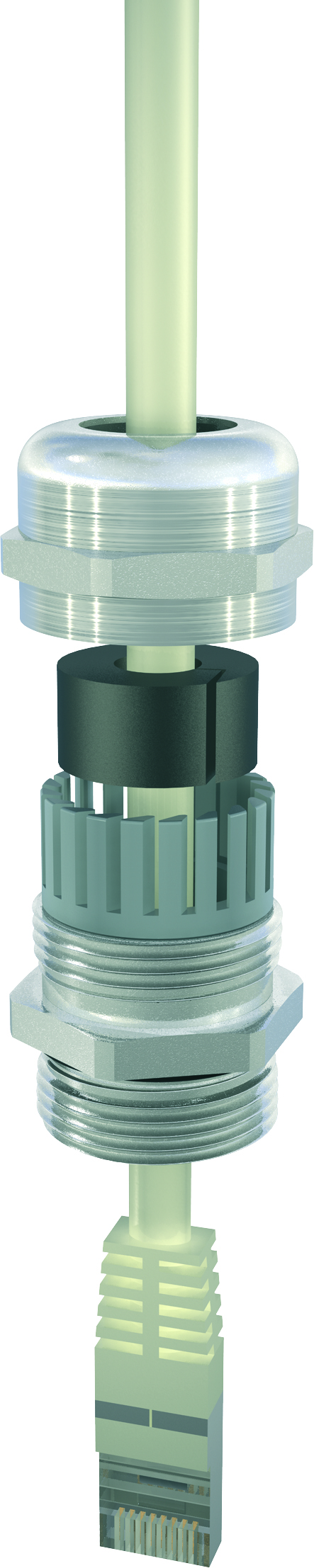

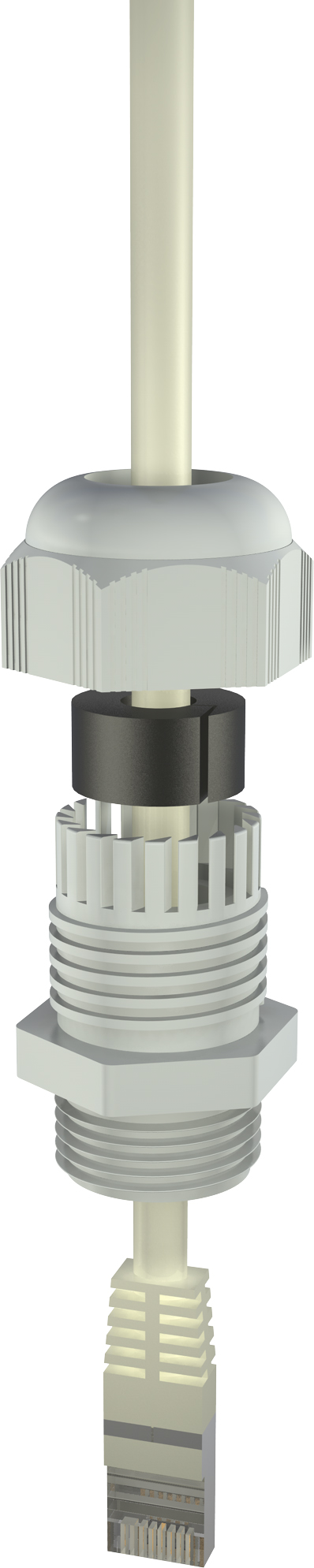

EuroTopConnect_NPBEuroTopConnect_9005EuroTopConnect_7035EuroTopConnect_303

Features

  • Neoprene sealing insert
  • ISO sizes
  • Suitable for non-armoured cables with fixed connectors
  • Also suitable for industrial and underwater applications
  • Protection class options: IP66 (dust and waterproof), IP68 (underwater tested), IP69K (steam tested)
  • Suitable for polyamide and metallic Euro-Top glands
  • Temperature rating -20ºC to +100ºC and intermittent -30ºC up to +150ºC
  • Dimensions: M20 x 1.5 and M25 x 1.5 for polyamide Euro-Top cable glands and M32 x 1.5 for nickel plated brass and stainless steel Euro-Top cable glands

Ingress protection levels

IP66 68 and 69K (EN 60529/IEC 60529)

Ambient temperature

-55ºC to +65°C with appropriate gasket

Description

Euro-top Connect a special sealing insert, allowing non armoured cables with pre-assembled or fixed termination connectors to be easily connected to enclosures and junction boxes via Euro-Top cable glands.

The internal sealing ring, with a cross section of 18 mm, caters for cables with overall diameters between 3.0 mm and 8.0 mm, makes the Euro-Top Connect useful for small connectors ranging from M8 to USB and RJ-45.
Article
M 		Clamping Range
  L
RAL 7001 RAL 7035 RAL 9005
12580522 11580522 13580522 20 x 1.5 3.0 6.0 27 10
12580525 11580525 13580525 25 x 1.5 3.0 8.0 33 8
Nickel plated brass Stainless steel
60580532 32 x 1.5 3.0 8.0 34 8
90580532 32 x 1.5 3.0 8.0 30 9



Technical data (Extract) (For detailed information please click here)

Protection class

IP 66, 68 and 69K (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

Neoprene

Weight

see data sheet

Resistance

Impact resistance – see data sheet

Documentation

Euro-Top_Connect glands datasheet

Declaration of Conformity

Customer requirements – Terminal Boxes

Operating Instructions – Empty enclosure
