Ex and industrial reducers, enlargers and adapters

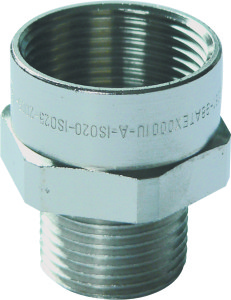

Reducer_EXEnlarger_NPB_Ex

Features

  • Manufactured from nickel plated brass or stainless steel for Ex applications
  • Manufactured from polyamide and nickel plated brass for industrial applications
  • Ex e, Ex d and IP68 versions for metallic reducers/enlargers:-
  • Ex e / Ex d IP66 or 68 Hexagonal nickel plated brass and stainless steel include ISO-ISO sizes from M12-M16 to M90-M75, ISO-NPT sizes from M12-NPT1/4″ to M110-NPT 3 1/2″, NPT-NPT sizes from NPT 1/4″-NPT 3/8″ to NPT 3 1/2″-NPT3″ and NPT-ISO sizes from NPT 1/4″-M12 to NPT 3 1/2″-M110.
  • Non Ex versions for general industrial applications in nickel plated brass and polyamide include:-
  • IP54 ISO and PG size nickel plated brass knurled reducers are available from M16-M12 to M63-M50 or PG9-PG7 to PG48-PG42
  • IP54 ISO and PG size nickel plated brass round enlargers are available from M12-M16 to M50-M63 or PG7-PG9 to PG42-PG48.
  • IP54 ISO-PG and PG-ISO nickel plated brass hexagonal adapters are available from M12-PG7 to M63-PG48 and PG7-M12 to PG42-M63
  • IP54 ISO-ISO and PG-PG polyamide reducers available from M16-M12 to M63-M50 and PG9-PG7 to PG48-PG42.
  • IP54 ISO-ISO and PG-PG polyamide enlargers are available from M12-M16 to M32-M40 and PG7-PG9 to PG42-PG48
  • IP54 ISO-PG and PG-ISO polyamide adapters are available from M12-PG7 to M63-PG48 and PG7-M12 to PG29-M40

Certification

SIRA 09 ATEX 1322X

Ex protection type (EN 50018/IEC 60079-1 and EN 50019/IEC 60079-7)

Ex II 2 GD
Ex d IIC
Ex e IIc Gb
Ex tb IIIC Db

Ex I M2

Ex d I Mb

Ex e I Mb

Ingress protection levels

IP66 and 68 (EN 60529/IEC 60529) for Ex applications

IP54 (EN 60529/IEC 60529) for industrial applications

Ambient temperature

-30ºC to +100°C (as standard for Ex applications)

-60ºC to +200ºC (optional with silicon seal for Ex applications)

-40ºC to +100ºC (for industrial applications)

Description

Ex metal adapters and reducers are manufactured from nickel plated brass or 316L stainless steel (EN 1.4404) with ISO to ISO, ISO to NPT, NPT to ISO and NPT to NPT configurations for both hazardous area applications (IP66 or 68). Reducers are also available with ISO to ISO and PG to PG configurations in nickel plated brass or polyamide (IP54) for industrial use. Industrial use enlargers are also available with ISO to ISO and PG to PG configurations in polyamide or nickel plated brass or polyamide (IP54) for industrial use.



Technical data (Extract) (For detailed information please click here)

Protection class

IP 54, 66 and 68 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

Nickel plated brass or 316L stainless steel for Ex applications

Nickel plated brass or Polyamide for industrial use

Weight

see data sheet

Resistance

Impact resistance – see datasheet

Documentation

Ex Metal adapters and reducers Data Sheet

Declaration of Conformity

Customer requirements

Operating Instructions
