Specials and Custom Made Enclosures

Your design135418743

Ingress protection levels

IP20 to 68 (EN 60529/IEC 60529)

Ambient temperature

-55ºC to +65°C with appropriate gasket

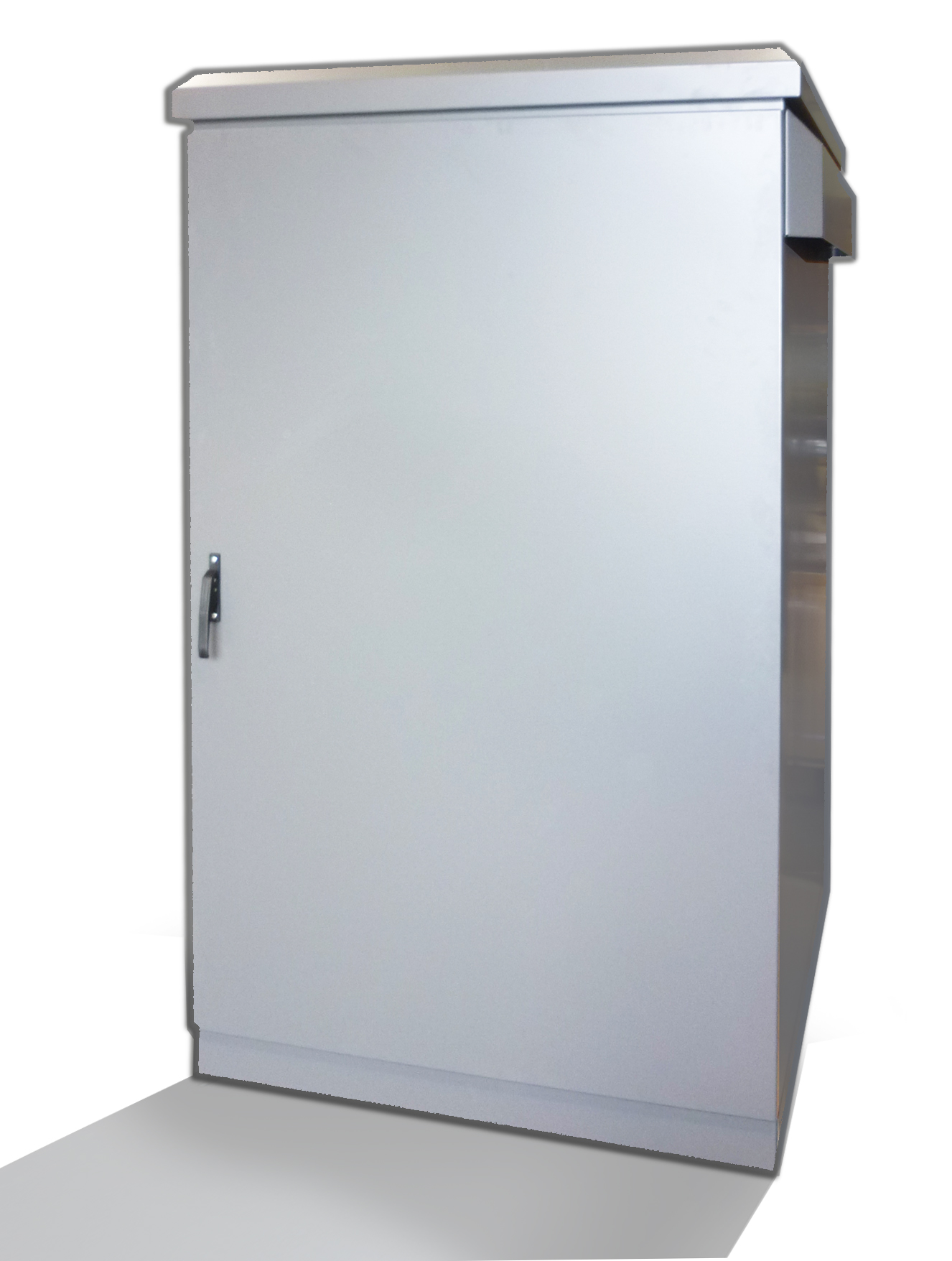

 CTEX BOX FOR WEB

Description

CE-TEK are equipped to manufacture enclosures in mild steel, stainless steel, aluminium and various other materials in special sizes ranging from 80x80x30 mm up to 30000x10000x10000 mm, and in GRP 100x100x50 mm up to 10000x5000x5000 mm. Ingress protection classes from IP20 to IP68 are available. Typical applications include: telecommunication repeater stations, large digital displays, wind farms and renewable energy sites, military applications, food/beverage manufacturing and processing, RF and EMC applications, defibrillator enclosures, etc.

Optional extras include: viewing windows, doors, shelving, internal compartments, OEM labelling, RFI shielding for EMC compliance, heaters, fans, thermostats, floor stands and plinths, lifting eyes and many more.

For high volume situations, CE-TEK can manufacture special sizes and colours in plastic materials using our ‘Buildabox’ range, which are fabricated from flat sheets – avoiding the use of expensive tooling associated with moulded enclosures.



Technical data (Extract) (For detailed information please click here)

Protection class

IP 20 to 68 (EN 60529/IEC 60529)

Dimensions

see data sheet

Material

GRP, Mild/Stainless Steel and Plastic

Weight

see data sheet

Resistance

Impact resistance – see datasheet

Documentation

CE-TEK Specials – Enclosures

Declaration of Conformity

Customer requirements – Terminal Boxes

Operating Instructions – Empty enclosure

Operating Instructions – Empty enclosure
